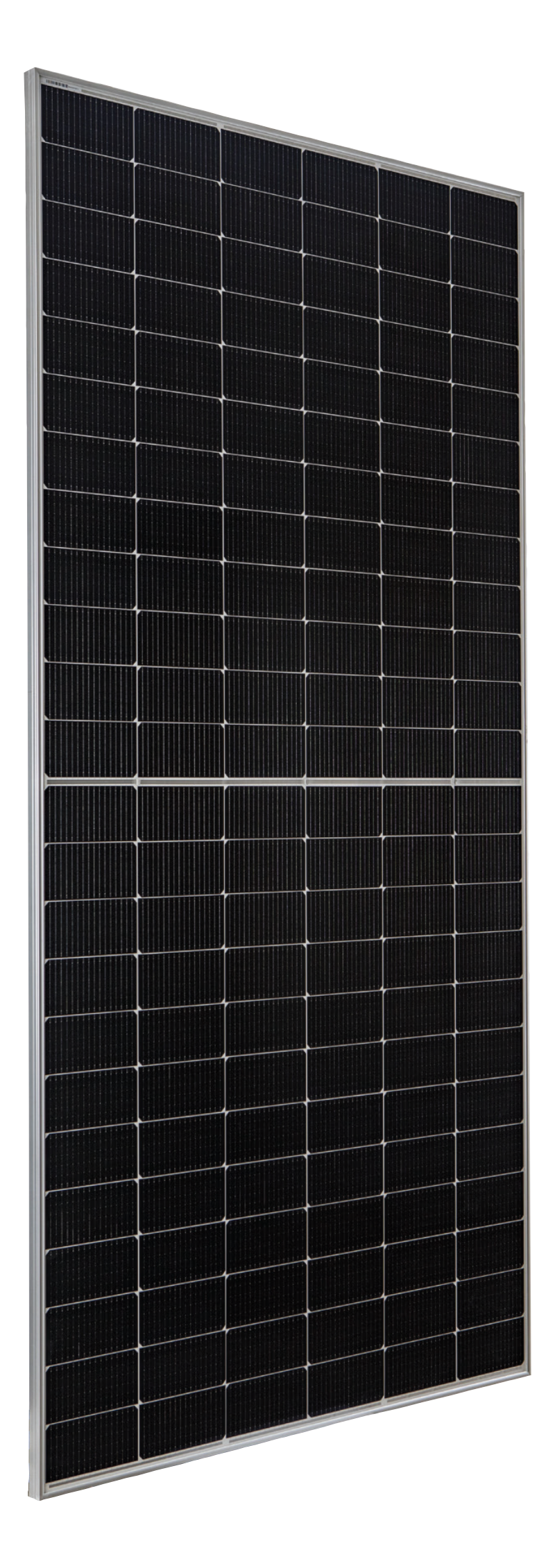

MSI10xxx4THG

Dual Glass

The PERC Bifacial 144HC Dual Glass module from Mission Solar Energy delivers up to 555W of power and features advanced bifacial technology, rugged dual-glass construction, and excellent resilience in coastal and high-load environments. Designed for both commercial and residential applications, it’s built to perform reliably in the harshest conditions.

Power Output: 545–555W (+0 to +5W)
Bifacial Gain: Up to 25% rear-side boost
Dual Glass Build: Enhanced durability & corrosion resistance
Warranty: 12-year product, 30-year performance

Product Datasheet

Installation Manual

Product Warranty

Terms & Conditions

UFPLA Compliance Statement

SOLAR PANEL FEATURES

Fair Trade Practices

Free of forced labor at all stages of the supply chain

Certified Reliability

Tested to UL 61730 & IEC Standards

Advanced Technology

Half-cut cell with 10 busbar

Extreme Weather Resilience

Up to 5,400 Pa front load & 2,400 Pa back load

CERTIFICATIONS & TESTS

61730

IEC

Standards

SHIPPING INFORMATION

Container

40'

Pallet

Modules

720

550W BIN

396 kW

Total Weight

51,588 lbs./ 23,400 kg

BASIC DIMENSIONS

[UNITS: MM/IN]

Front

1136.0MM / 44.7IN

Back

1136.0MM / 44.7IN

Side

31.0MM / 1.22IN

TAKE THE NEXT STEP

Mission Solar Energy panels are Designed, Engineered & Assembled in San Antonio, Texas. See how you can start saving with our High-Power, High-Quality residential panels.
