The MSH10 N-Type Bifacial 144HC Dual Glass module is Mission Solar Energy’s high-performance solution for commercial and industrial applications. With 590W of front-side output, this N-type dual-glass module leverages N-Type and SMBB technology for exceptional durability, efficiency, and power gain from both sides. Built to withstand extreme environments, it offers a 30-year performance warranty and best-in-class long-term reliability.
Outstanding Efficiency
Up to 22.8% module efficiency
Rear-side Bifacial Gain
Up to 25% additional power, yielding up to 731W total output
Built to Withstand Harsh Conditions
Rated for 5,400 Pa front / 2,400 Pa back load and 25mm hail at 23 m/s
Low Degradation
Max 1% in year 1, then just 0.4% annually—maintaining 87.4% output at year 30
Warranty
15-year product, 30-year linear power performance warranty
UL
61730
Pallets
16
Modules
496
590W Bin
292.64 kW
Total Weight
2205 lbs. (1000 kg)

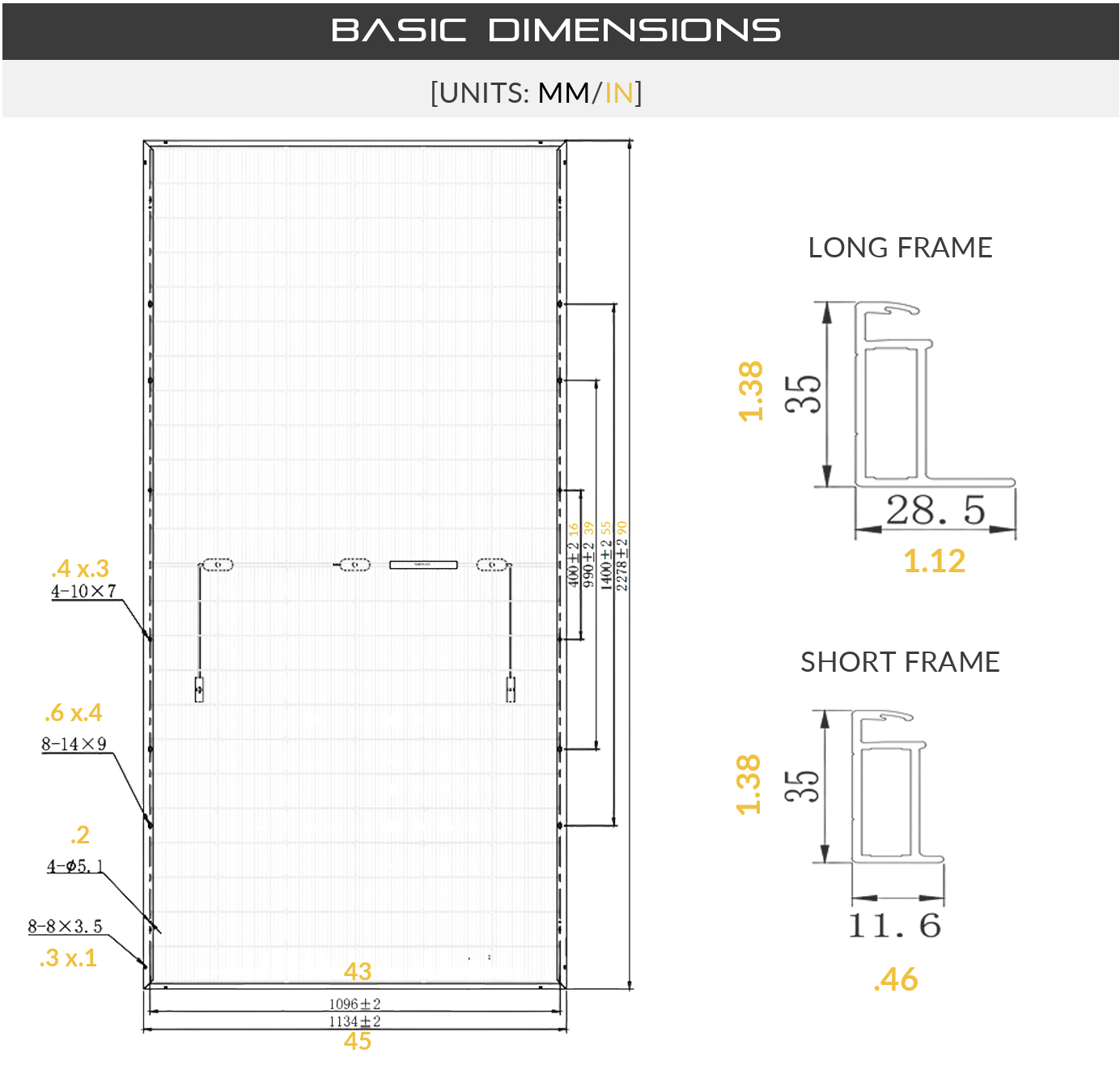

FRONT
2278.0 ±2MM / 90IN
SIDE
1134.0 ±2MM / 45IN
BACK
35.0MM / 1.38IN
