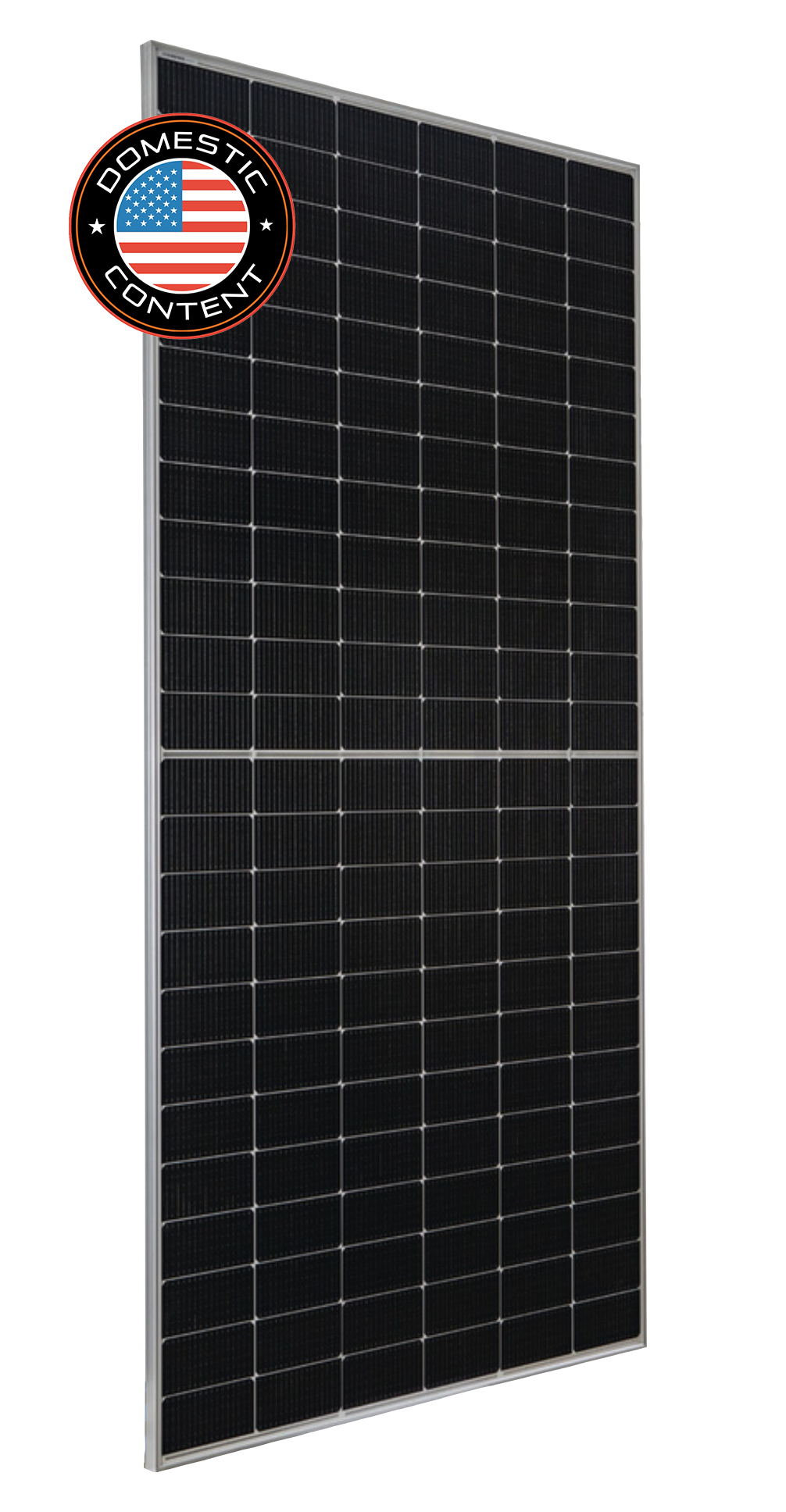

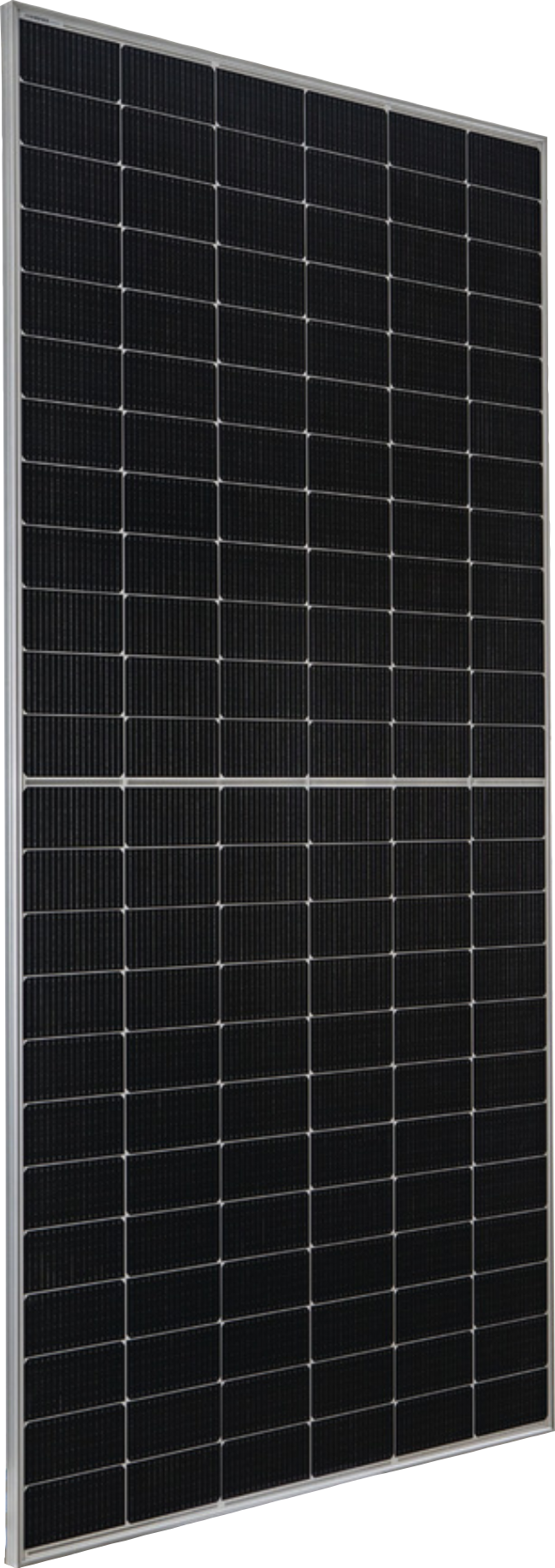

The N-Type Bifacial 144HC is a high-output, domestic content dual-glass solar module engineered for commercial and utility-scale applications. Featuring N-type monocrystalline cells, bifacial energy generation, and advanced SMBB technology, it delivers power outputs ranging from 590W to 600W with module efficiency up to 23%. Its durable dual-glass construction and high mechanical load ratings provide dependable performance in demanding environmental conditions.
Power Output
590–600W (+0 to +3%)
Efficiency
Up to 23% with advanced SMBB technology
Durability
Up to 5,400 Pa front load and 2,400 Pa back load for mechanical strength
Warranty
15-year product warranty and 30-year performance warranty, with degradation not exceeding 1% in year one and 0.4% annually from years 2–30. Guaranteed output of 87.4% in year 30.
UL
61730
Truck Load
53’
Ship To
Most States
Pallets
16
Modules
496
595W Bin
295.12 kW
Pallet Configuration
31 modules per pallet, double-stacked in horizontal orientation.

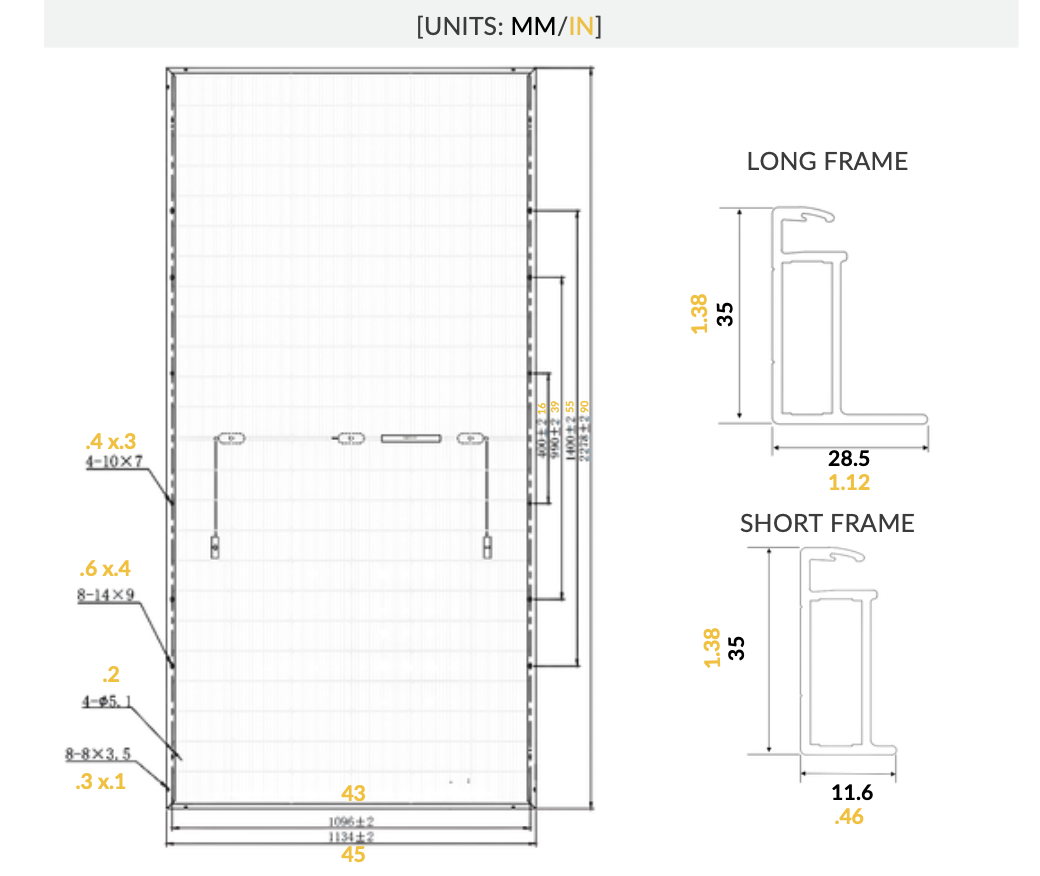

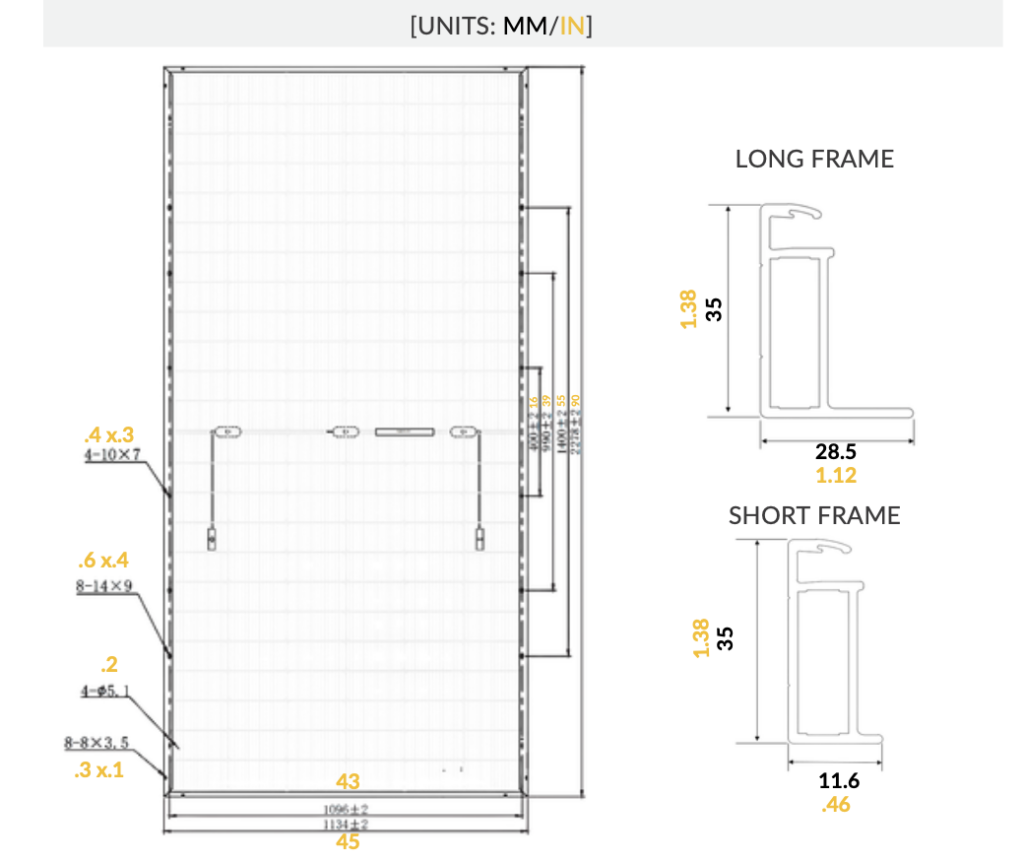

FRONT
2278 mm / 89.7 in
SIDE
1134 mm / 44.6 in
BACK
35 mm / 1.4 in
